Cross-covariance between process and measurement noise

In standard Kalman filter formulations, the process noise $w$ and measurement noise $v$ are assumed to be uncorrelated. However, in some applications, these noise sources may be correlated. This tutorial demonstrates how to model and account for cross-covariance between process and measurement noise using the R12 parameter.

Background

The standard discrete-time stochastic state-space model is

\[\begin{aligned} x_{k+1} &= f(x_k, u_k) + w_k \\ y_k &= h(x_k, u_k) + v_k \end{aligned}\]

where $w_k \sim N(0, R_1)$ is the process noise and $v_k \sim N(0, R_2)$ is the measurement noise. The standard assumption is that $E[w_k v_j^T] = 0$ for all $k, j$.

When process and measurement noise are correlated, we have

\[\text{Cov}\begin{pmatrix} w_k \\ v_k \end{pmatrix} = \begin{pmatrix} R_1 & R_{12} \\ R_{12}^T & R_2 \end{pmatrix}\]

where $R_{12} = E[w_k v_k^T]$ is the cross-covariance matrix (following the notation in Simon's "Optimal State Estimation", Section 7.1).

This correlation can arise in several scenarios:

  • When process and measurement noise share a common source
  • In systems where a sensor measures a quantity that is directly affected by the process disturbance
  • When discretizing continuous-time systems where process and measurement noise are correlated

Measurement models with R12 support

The following measurement models support the R12 cross-covariance parameter:

The UKFMeasurementModel does not support R12 directly since the unscented transform uses sigma-point propagation rather than analytical covariance formulas. However, you can use an EKFMeasurementModel or LinearMeasurementModel with an UnscentedKalmanFilter to get R12 support while still using the unscented transform for the prediction step.

Example: Scalar system with correlated noise

We demonstrate the effect of R12 using a simple scalar system:

\[\begin{aligned} x_{k+1} &= 0.8 x_k + w_k \\ y_k &= x_k + v_k \end{aligned}\]

using LowLevelParticleFilters, LinearAlgebra, Plots, Statistics, Random
using LowLevelParticleFilters: SimpleMvNormal
using StaticArrays

# System parameters
A = SA[0.8;;]
B = SA[0.0;;]
C = SA[1.0;;]
R1 = SA[1.0;;]   # Process noise covariance
R2 = SA[0.1;;]   # Measurement noise covariance
R12 = SA[0.25;;] # Cross-covariance

# Initial state distribution
d0 = SimpleMvNormal(SA[0.0], SA[1.0;;])

# Dynamics and measurement functions
dynamics(x, u, p, t) = A * x
measurement(x, u, p, t) = C * x

Comparing EKF with and without R12

We now create two Extended Kalman Filters: one that ignores the cross-covariance (standard approach) and one that accounts for it.

# EKF without R12 (ignoring correlation)
ekf_no_r12 = ExtendedKalmanFilter(dynamics, measurement, R1, R2, d0; nu=1)

# EKF with R12
ekf_with_r12 = ExtendedKalmanFilter(dynamics, measurement, R1, R2, d0; nu=1, R12=R12)

u = fill([], 100) # No control inputs

x, u, y = simulate(ekf_with_r12, u) # Simulate data using the filter with R12

# Run both filters
sol_no_r12 = forward_trajectory(ekf_no_r12, u, y)
sol_with_r12 = forward_trajectory(ekf_with_r12, u, y)

Comparing estimation performance

The filter that accounts for the cross-covariance achieves a lower steady-state estimation variance. This is expected because it correctly uses all available information about the noise correlation structure.

We can compare the actual estimation errors:

# Estimation errors
err_no_r12 = x .- sol_no_r12.xt |> stack
err_with_r12 = x .- sol_with_r12.xt |> stack

println("RMS error without R12: ", round(sqrt(mean(abs2, err_no_r12)), digits=4))
println("RMS error with R12: ", round(sqrt(mean(abs2, err_with_r12)), digits=4))
RMS error without R12: 0.2426
RMS error with R12: 0.1591

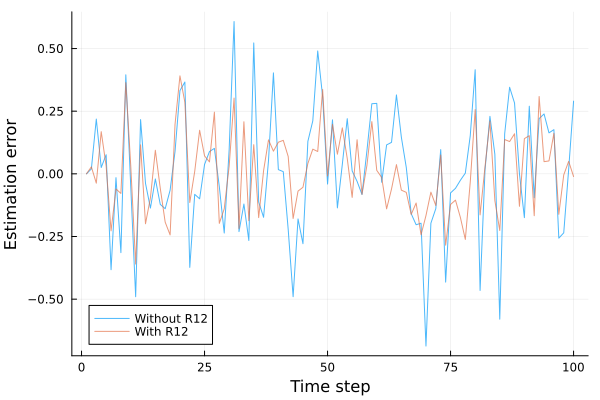

plot(err_no_r12', label="Without R12", xlabel="Time step", ylabel="Estimation error", alpha=0.7)
plot!(err_with_r12', label="With R12", alpha=0.7)
Example block output

Using R12 with UnscentedKalmanFilter

The UnscentedKalmanFilter uses sigma-point propagation and its native UKFMeasurementModel does not yet support R12. However, you can combine an UKF with an EKFMeasurementModel or LinearMeasurementModel to get R12 support in the correction step:

# Create an EKFMeasurementModel with R12
mm_ekf_r12 = EKFMeasurementModel{Float64, false}(measurement, R2; nx=1, ny=1, R12=R12)

# Create UKF with this measurement model
ukf_with_r12 = UnscentedKalmanFilter(dynamics, mm_ekf_r12, R1, d0; nu=1, ny=1)
UnscentedKalmanFilter{false,false,false,false}
  Inplace dynamics: false
  Inplace measurement: false
  Augmented dynamics: false
  Augmented measurement: false
  nx: 1
  nu: 1
  ny: 1
  Ts: 1.0
  t: 0
  dynamics: dynamics
  measurement_model: EKFMeasurementModel{false, typeof(Main.measurement), StaticArraysCore.SMatrix{1, 1, Float64, 1}, LowLevelParticleFilters.var"#106#110"{typeof(Main.measurement)}, StaticArraysCore.SMatrix{1, 1, Float64, 1}, Nothing})
  R1: [1.0;;]
  d0: SimpleMvNormal{SVector{1, Float64}, SMatrix{1, 1, Float64, 1}}([0.0], [1.0;;])
  predict_sigma_point_cache: LowLevelParticleFilters.SigmaPointCache{Vector{StaticArraysCore.SVector{1, Float64}}, Vector{StaticArraysCore.SVector{1, Float64}}})
  x: [0.0]
  R: [1.0;;]
  p: NullParameters()
  reject: nothing
  state_mean: weighted_mean
  state_cov: weighted_cov
  cholesky!: cholesky!
  names: SignalNames(["x1"], ["u1"], ["y1"], "UKF")
  weight_params: TrivialParams()
  R1x: nothing

Similarly, you can use a LinearMeasurementModel with R12:

mm_linear_r12 = LinearMeasurementModel(C, 0, R2; nx=1, ny=1, R12=R12)
ukf_linear_r12 = UnscentedKalmanFilter(dynamics, mm_linear_r12, R1, d0; nu=1, ny=1)
UnscentedKalmanFilter{false,false,false,false}
  Inplace dynamics: false
  Inplace measurement: false
  Augmented dynamics: false
  Augmented measurement: false
  nx: 1
  nu: 1
  ny: 1
  Ts: 1.0
  t: 0
  dynamics: dynamics
  measurement_model: LinearMeasurementModel{StaticArraysCore.SMatrix{1, 1, Float64, 1}, Int64, StaticArraysCore.SMatrix{1, 1, Float64, 1}, StaticArraysCore.SMatrix{1, 1, Float64, 1}, Nothing})
  R1: [1.0;;]
  d0: SimpleMvNormal{SVector{1, Float64}, SMatrix{1, 1, Float64, 1}}([0.0], [1.0;;])
  predict_sigma_point_cache: LowLevelParticleFilters.SigmaPointCache{Vector{StaticArraysCore.SVector{1, Float64}}, Vector{StaticArraysCore.SVector{1, Float64}}})
  x: [0.0]
  R: [1.0;;]
  p: NullParameters()
  reject: nothing
  state_mean: weighted_mean
  state_cov: weighted_cov
  cholesky!: cholesky!
  names: SignalNames(["x1"], ["u1"], ["y1"], "UKF")
  weight_params: TrivialParams()
  R1x: nothing

Summary

When process and measurement noise are correlated:

  1. Ignoring the correlation (setting R12=0) leads to suboptimal estimation with higher estimation-error variance.

  2. The R12 parameter can be specified in:

  3. To use R12 with UnscentedKalmanFilter, provide an EKFMeasurementModel, LinearMeasurementModel, or IEKFMeasurementModel instead of the default UKFMeasurementModel.

  4. The mathematical formulas used when R12 is present follow Simon's "Optimal State Estimation" Section 7.1:

    • Innovation covariance: $S = C R C^T + C R_{12} + R_{12}^T C^T + R_2$
    • Kalman gain: $K = (R C^T + R_{12}) S^{-1}$
    • Updated covariance: $R^+ = (I - K C) R - K R_{12}^T$
